Audio Extension Module AEM-1

 Mietpreis

 Beschreibung

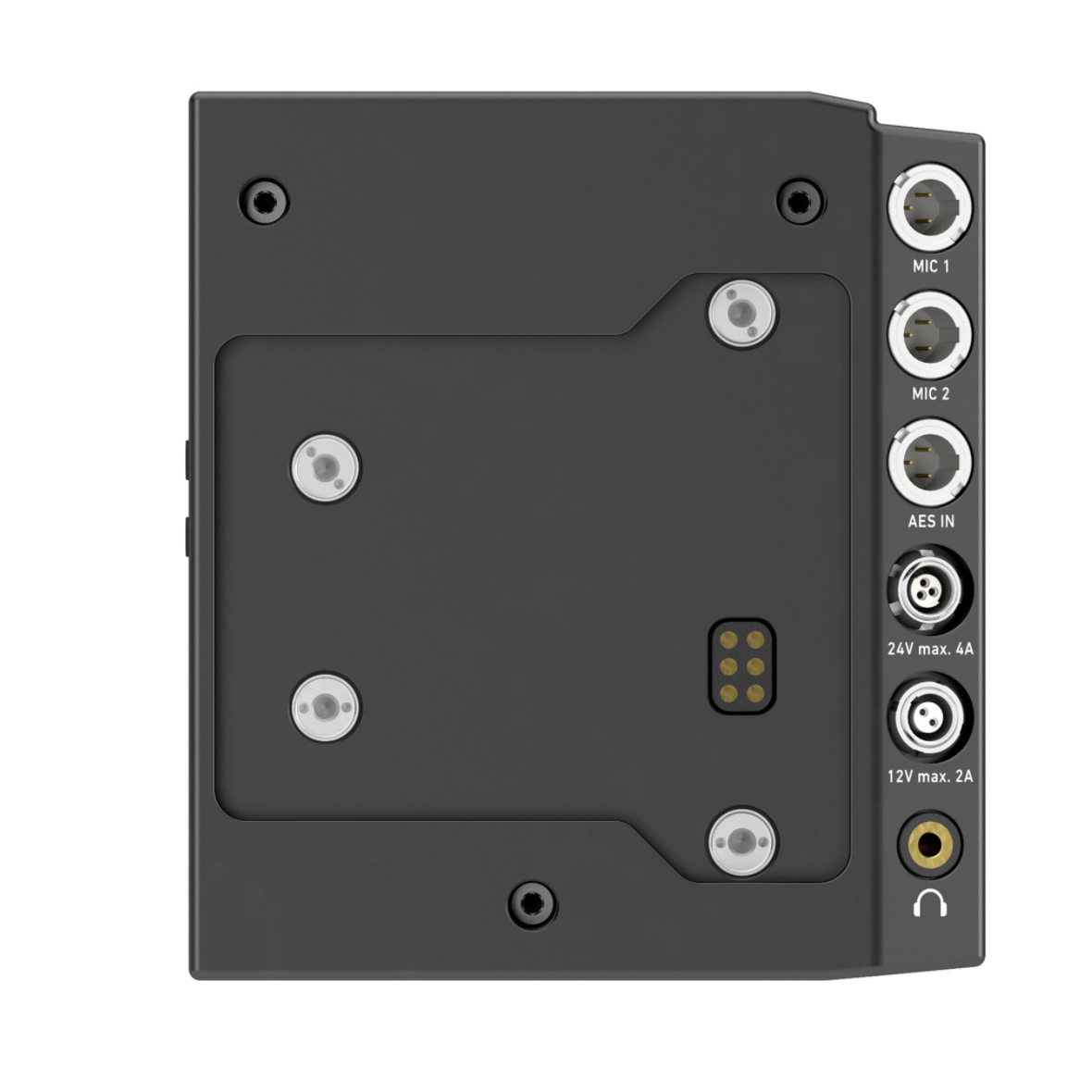

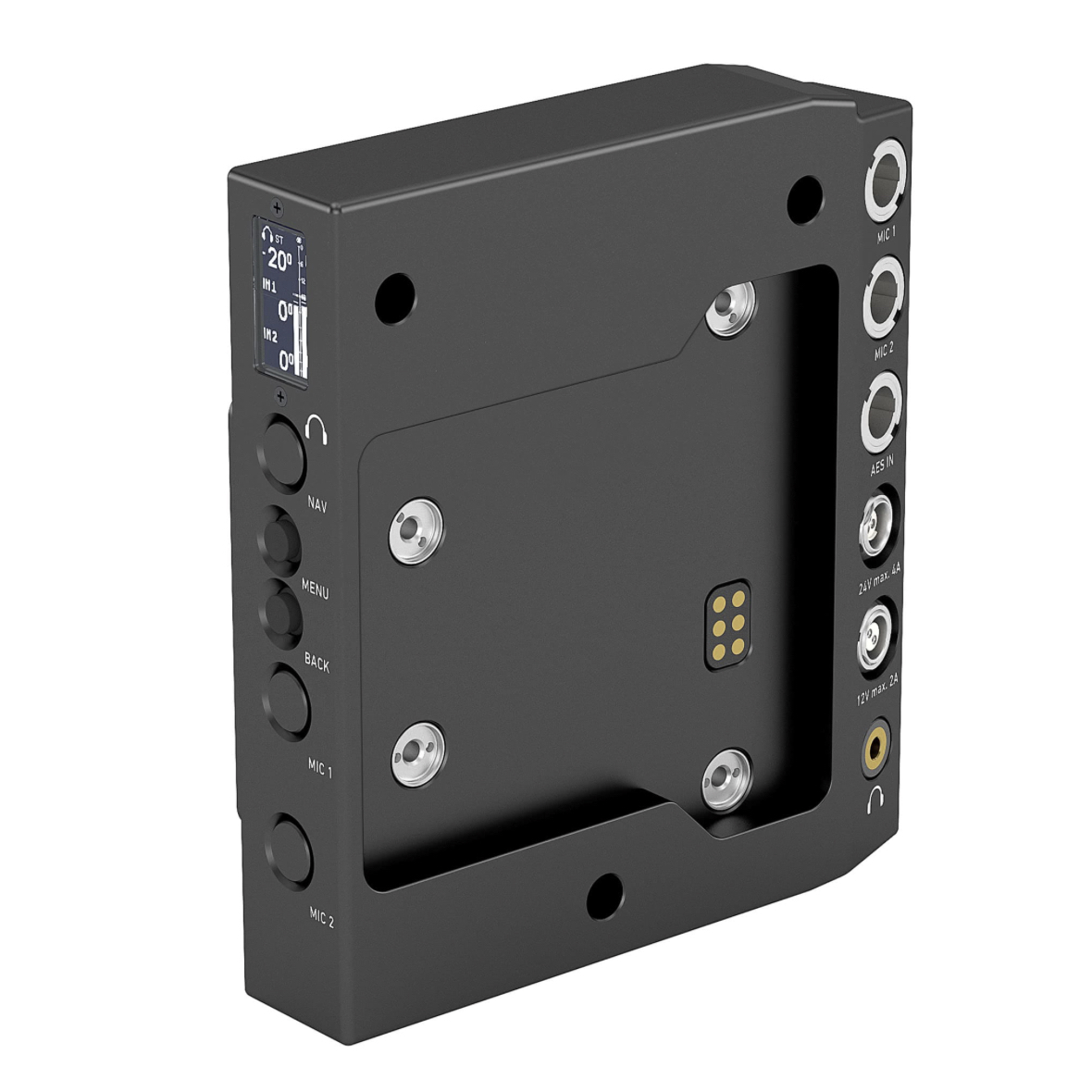

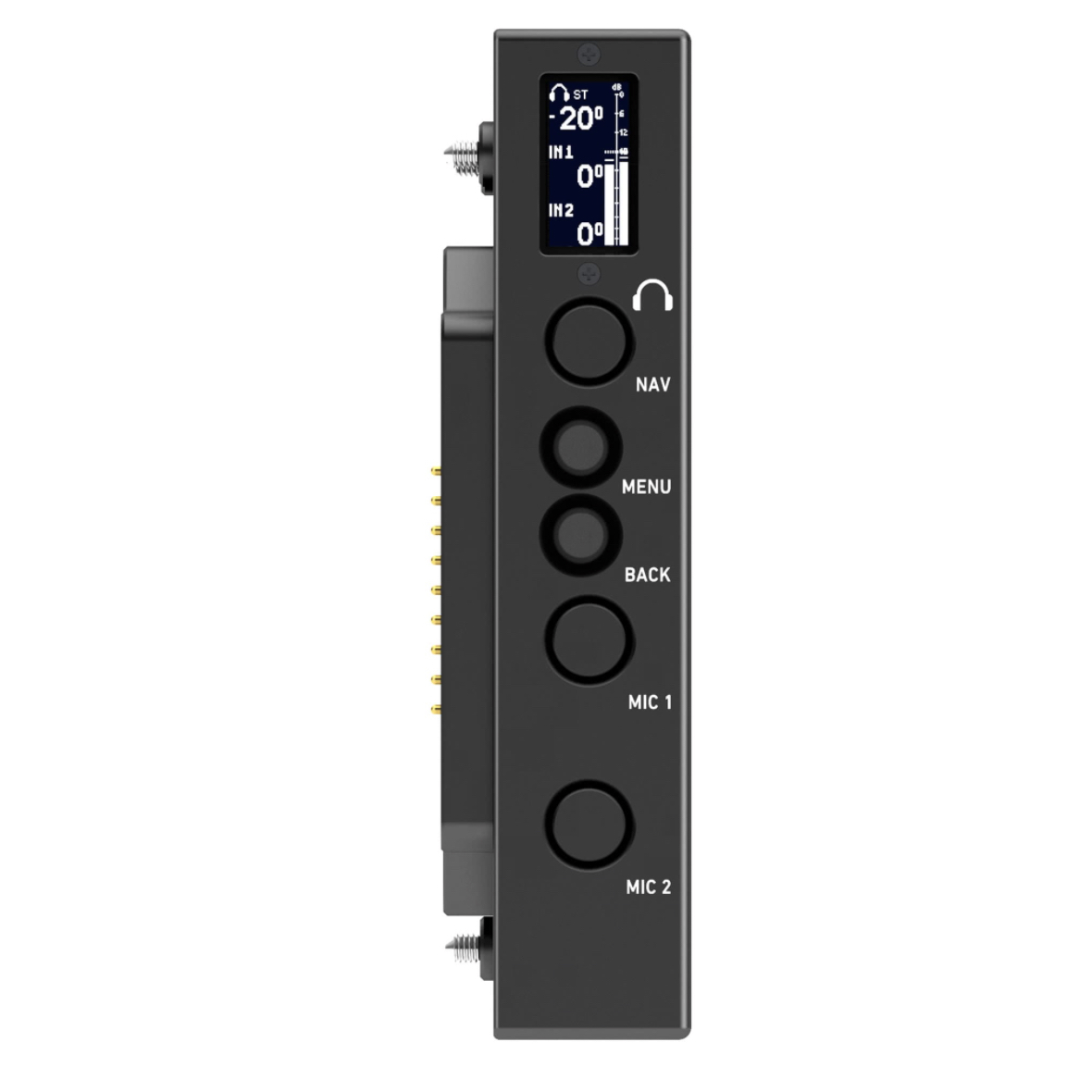

The Audio Extension Module AEM-1 adds a high-quality audio interface and extra accessory power outputs to the ALEXA 35. Featuring two ultra-low noise microphone preamplifier channels, the AEM-1 mounts directly to the rear of the camera as an integrated electronic module. Selectable features include MIC/LINE input, 48V Phantom power, phase reversal, adjustable low-cut filter, gain and limiter. The AEM-1 also features an AES stereo digital audio input and a high quality Headphone amplifier.

Inputs:

• 2x mic/line inputs on TA3,
•  electronically balanced, with phase reversal, 48V phantom,
•  LF cut and level control
•   1x AES3/AES42 on TA3, transformer balanced input with phase reversal and level control
•  1x line/headphones stereo output on 3.5 mm mini-jack
• 12V 2p LEMO power output
• 1x 24V RS power output
